Nginx: Setting Up a Simple Proxy Server Using Docker and Python/Django...

UPDATE: The docker-compose file has been updated to allow django server send logs to logstash properly. Please reference the repository as well as the settings.py for the logging settings.

This post is a continuation of Using Docker with Elasticsearch, Logstash, and Kibana (ELK) where we dockerized the whole application.

At the end of that post, I suggested that folks add Nginx to the docker configuration as a form of practice. In this post, I will make yet another bold attempt to show what Nginx is and why it should be considered for use and how to add it to the existing configuration.

Feeling excited? let's do this!

A little Background

Normally, applications running on any platform (Production or Development) make use of a server to respond to any request from the calling client (users of the application), the framework of concern here is Python/Django which uses the runserver (python manage.py runserver) as the development server to deliver content whenever a request is made.

While this is good it is not advisable to use this development server (runserver) for a production environment and that is where Green Unicorn comes into play, Green Unicorn (Gunicorn) is a python Http server that interacts with the web application via Web Server Gateway Interface (WSGI) a middle man between the Web Application and the Web Server.

However, using Gunicorn on its own as a Production server is not totally advisable even by Green Unicorn from their documentation page

Although there are many HTTP proxies available, we strongly advise that you use Nginx. If you choose another proxy server you need to make sure that it buffers slow clients when you use default Gunicorn workers. Without this buffering Gunicorn will be easily susceptible to denial-of-service attacks.

That said, for our current setup, we are going to create a production environment where we will incorporate Gunicorn and Nginx as our Server and Proxy server respectively for the application.

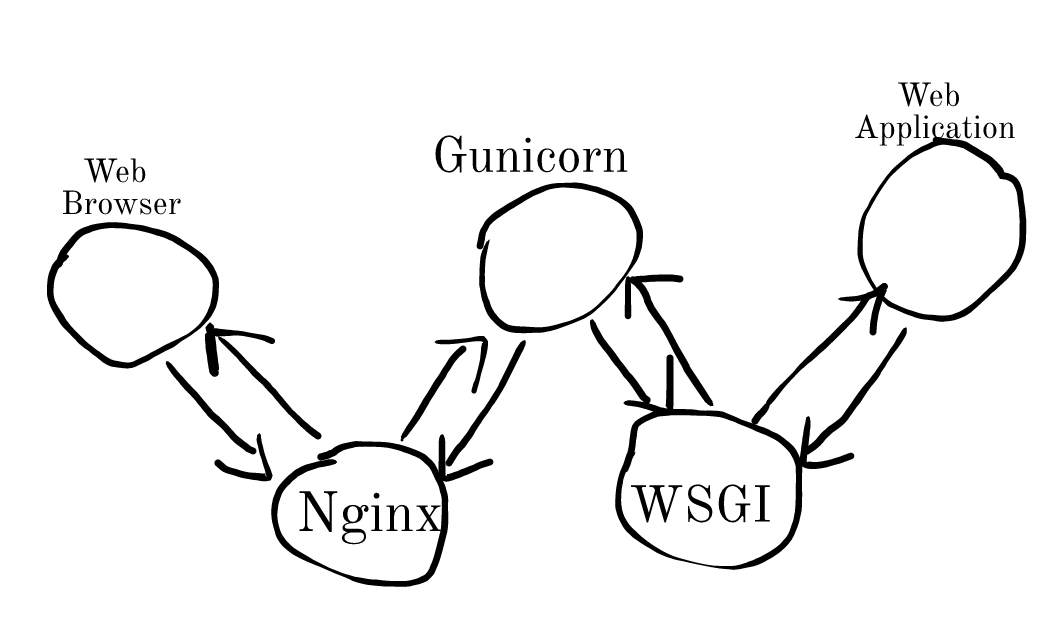

Workflow: Web browser makes a request which goes first to Nginx (Proxy Server), Nginx acts as a proxy and sends that request to Gunicorn ( python Http server). Gunicorn receives that and communicates with the web application via an interface called the web server gateway interface (WSGI).

Time To Implement

Here is the SOURCE CODE for reference.

First, we split up our Docker Config

We originally had a simple docker-compose.yml file where all our configuration was placed. Depending on what you want you can split up your file structure into a Production and Development folder for your dockerfile configuration.

For this section, I created two extra files called docker-compose.override.yml and docker-compose.prod.yml and modified the already existing docker-compose.yml file.

# docker-compose.override.yml

version: '3.2'

services:

  django_web:
    labels:
      com.example.service: "web"
      com.example.description: "Use for the main web process"
    build:
      context: ./bookme/docker_compose/django/
      dockerfile: Dockerfile
    image: bookme_django_web:1.0
    depends_on:
      - db
      - es
      - kibana
    command: ["./docker_compose/django/wait_for_postgres.sh"]
    ports:
      - "8000:8000"
    environment:
      PRODUCTION: 'false'
    logging:
      driver: "json-file"
    volumes:
      - ./bookme:/app


# docker-compose.yml

version: '3.2'

services:
 db:
   restart: always
   image: postgres
   container_name: bookme_db
   volumes:
     - type: volume
       source: dbdata
       target: /pg_data
   ports:
     - "8001:5432"
 django_web:
   container_name: django_web
   environment:
     - LOGSTASH_HOST=logstash
   expose:
     - "5959"
 es:
   labels:
     com.example.service: "es"
     com.example.description: "For searching and indexing data"
   image: elasticsearch:5.4
   container_name: bookme_es
   volumes:
     - type: volume
       source: esdata
       target: /usr/share/elasticsearch/data/
   ports:
     - "9200:9200"
 kibana:
   labels:
     com.example.service: "kibana"
     com.example.description: "Data visualisation and for log aggregation"
   image: kibana:5.4.3
   container_name: bookme_kibana
   ports:
     - "5601:5601"
   environment:
     - ELASTICSEARCH_URL=http://es:9200
   depends_on:
     - es
 logstash:
   labels:
     com.example.service: "logstash"
     com.example.description: "For logging data"
   image: logstash:5.4.3
   volumes:
     - ./:/logstash_dir
   command: logstash -f /logstash_dir/logstash.conf
   ports:
     - "5959:5959"
   depends_on:
   - es

volumes:
 dbdata:
 esdata:

Here I am making use of the common configuration ability of docker-compose where the file docker-compose.override.yml together with the docker-compose.yml file acts as our development configuration.

Think of it as substitution where the docker-compose.yml configuration is used as a common configuration for both the override (development) and prod (production) configuration.

# docker-compose.prod.yml

version: '3.2'

services:
  django_web:
    labels:
      com.example.service: "web"
      com.example.description: "Use for the main web process"
    build:
      context: ./bookme/docker_compose/django/
      dockerfile: Dockerfile
    image: bookme_django_web:1.0
    depends_on:
      - db
      - es
      - kibana
    command: ["./docker_compose/django/wait_for_postgres.sh"]
    environment:
      PRODUCTION: 'true'
      LOGSTASH_HOST: logstash
    expose:
      - "5959"
    logging:
      driver: "json-file"
    volumes:
      - ./bookme:/app
  nginx:
    restart: always
    container_name: nginx_server
    build:
      context: ./bookme/docker_compose/nginx/
      dockerfile: Dockerfile
    depends_on:
      - django_web
    ports:
      - "0.0.0.0:80:80"

The override file has just the django-web service only while the prod config file has the django_web service and the nginx service. The common config to both of them is the docker-compose.yml file.

Something to note here is the nginx service we have introduced in the docker-compose.prod.yml file, where we are mapping port 80 on the host machine to port 80 on the docker daemon process, as for the django_web service here we added an environment instruction to show that this setting is specifically for Production.

Second, we introduce the Dockerfile and nginx.conf file for nginx

# nginx dockerfile

FROM nginx:latest
ADD nginx.conf /etc/nginx/nginx.conf

Nginx file and configuration can be referenced here

# nginx.conf

user  nginx;
worker_processes  1;

error_log  /var/log/nginx/error.log warn;
pid        /var/run/nginx.pid;

events {
  worker_connections  1024;  ## Default: 1024, increase if you have lots of clients
}

http {
  include       /etc/nginx/mime.types;
  # fallback in case we can't determine a type
  default_type  application/octet-stream;

  log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
  '$status $body_bytes_sent "$http_referer" '
  '"$http_user_agent" "$http_x_forwarded_for"';

  access_log  /var/log/nginx/access.log  main;

  sendfile        on;
  #tcp_nopush     on;

  keepalive_timeout  65;

  upstream app {
    server django_web:8000;
  }

  server {
    # use 'listen 80 deferred;' for Linux
    # use 'listen 80 accept_filter=httpready;' for FreeBSD
    listen 80;
    charset utf-8;

    # Handle noisy favicon.ico messages in nginx
     location = /favicon.ico {
        return 204;
        access_log     off;
        log_not_found  off;
    }

     location / {
        # checks for static file, if not found proxy to app
        try_files $uri @proxy_to_app;
    }

    # django app
     location @proxy_to_app {
        proxy_redirect     off;
        proxy_set_header   Host $host;
        proxy_set_header   X-Real-IP $remote_addr;
        proxy_set_header   X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header   X-Forwarded-Host $server_name;
        proxy_pass http://app;
    }
  }
}

To understand the nginx.conf file let's take a look at the documentation briefly

nginx consists of modules which are controlled by directives specified in the configuration file. Directives are divided into simple directives and block directives. A simple directive consists of the name and parameters separated by spaces and ends with a semicolon. A block directive has the same structure as a simple directive, but instead of the semicolon, it ends with a set of additional instructions surrounded by braces ({ and }). If a block directive can have other directives inside braces, it is called a context (examples: events, http, server, and location).

Directives placed in the configuration file outside of any contexts are considered to be in the main context. The events and http directives reside in the main context, server in http, and location in server.

The rest of a line after the # sign is considered a comment.

To know more about the blocks and directives as that is another topic on its own I suggest going through their beginner's guide documentation and Gunicorn's official Nginx documentation page.

Third, we edit our start.sh script

# start.sh

#!/bin/bash

function manage_app () {
    python manage.py makemigrations
    python manage.py migrate
}

function start_development() {
    # use django runserver as development server here.
    manage_app
    python manage.py runserver 0.0.0.0:8000
}

function start_production() {
    # use gunicorn for production server here
    manage_app
    gunicorn bookme.wsgi -w 4 -b 0.0.0.0:8000 --chdir=/app --log-file -
}

if [ ${PRODUCTION} == "false" ]; then
    # use development server
    start_development
else
    # use production server
    start_production
fi

Two functions to take note of here, the start_development function which runs using the development server (runserver) and the start_production function which runs using the production server (gunicorn)

Fourth, we define our automation file to manage the way the application runs.

At this point we define a Makefile to automate repeated task such as starting a development environment, a production environment, ssh-ing into the containers, stopping the process and all... you can also add other commands to the file as well.

# makefile

start-dev:
  docker-compose up

start-prod:
  docker-compose -f docker-compose.yml -f docker-compose.prod.yml up

stop-compose:
  @eval docker stop $$(docker ps -a -q)
  docker-compose down

ssh-nginx:
  docker exec -it nginx_server bash

ssh-django-web:
  docker exec -it django_web bash

ssh-db:
  docker exec -it db bash

ssh-es:
  docker exec -it es bash

ssh-kibana:
  docker exec -it kibana bash

check-network-config-details:
  docker network inspect bookme_default

build-prod:
  docker-compose -f docker-compose.yml -f docker-compose.prod.yml build

build-dev:
  docker-compose build

To start the docker process in production run make start-prod
To start the docker process in development run make start-dev

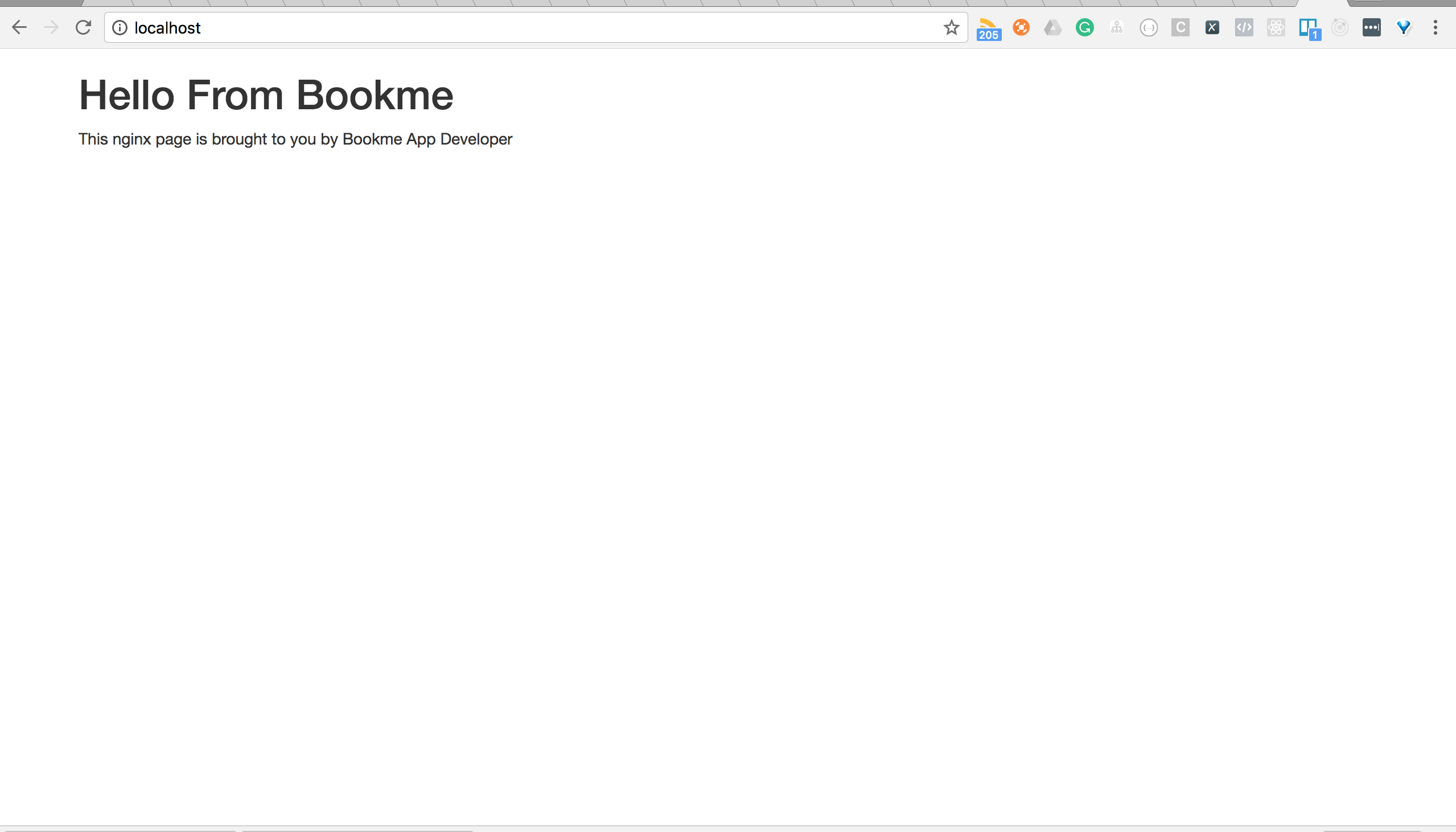

Once the application is up and running type localhost for production and http://localhost:8000/ for development on your browser to view this page.

The other commands are easy to see through at this point, but a little note on the production command for docker, the command docker-compose -f docker-compose.yml -f docker-compose.prod.yml up starts the docker process using only the docker-compose.yml and the docker-compose.prod.yml files.

Running docker-compose up here makes use of the docker-compose.yml and the docker-compose.override.yml files to start the development environment.

NOTE

Nginx, used as a Proxy server in this post amongst other things can also be used as a Software Load Balancer, as a Cache Proxy, Buffering... etc

If you are feeling inspired by all this gist on Nginx, you can read more on this from their site and use this post on digital ocean for a more in-depth look at Nginx.

Conclusion

So far so good we have made it all the way to this point, we were able to re-structure our docker-compose file, added a couple more to what we have existing, created a new dockerfile for nginx as well as adding the nginx.conf file to the project.

We also created a makefile to automate the process which includes starting the production and development environment as well as other management commands. This is where we wrap it up for this blog.

Congratulations, if you made it here. Thanks for reading and feel free to like this post.
