Managing Data in Golang Using Gorm - Part 2

In my previous blog post, we have seen how to use the create and find function in gorm along with use-case driven approach. In this blog post, we will be extending our blogging platform gomidway by implementing an another interesting use case.

Use Case #3 - Publishing a new blog post

Publishing a new blog post use case involves the following

• A user can publish a new blog post by providing a title, body of the post and a set of tags.

• If the title already exists we need to let the user know about it.

• We also need to let him know if publish went well.

Though the requirement looks simple on paper, there are some complexities regarding organizing the code and orchestrating the entire operation.

Let's dig up and see how we can solve it!

The Database Schema

As a first step, let's add some new tables to our existing schema which has only the users table.

The first one is the posts table

CREATE TABLE posts(
  id SERIAL PRIMARY KEY,
  title VARCHAR(50) UNIQUE NOT NULL,
  body TEXT NOT NULL,
  published_at TIMESTAMP NOT NULL,
  author_id INTEGER NOT NULL REFERENCES users(id)
);

Then we need to have an another table for tags

CREATE TABLE tags(
  id SERIAL PRIMARY KEY,
  name VARCHAR(50) NOT NULL
);

And finally, a bridge table to associate posts and tags

CREATE TABLE posts_tags(
  tag_id INTEGER REFERENCES tags(id),
  post_id INTEGER REFERENCES posts(id)
);

Note: a blog post can have multiple tags, and a tag can have multiple blog posts associated with it

Model Definitions - Post and Tag

The next step is defining equivalent models for Post and Tag in golang.

Let's create a new folder called tag and define the Tag model.

// tag/model.go
package tag

type Tag struct {
  ID   uint
  Name string
}

Then define the Post model in an another new folder post

// post/model.go
package post

import (
  "time"

  "github.com/tamizhvendan/gomidway/tag"
)

const (
  UniqueConstraintTitle = "posts_title_key"
)

type Post struct {
  ID          uint
  Title       string
  Body        string
  AuthorID    uint
  Tags        []tag.Tag `gorm:"many2many:posts_tags;"`
  PublishedAt time.Time
}

type TitleDuplicateError struct{}

func (e *TitleDuplicateError) Error() string {
  return "title already exists"
}

As we have seen in the previous blog post, the constant UniqueConstraintTitle and the TitleDuplicateError are required for doing unique constraint violation error check on the title column and to communicate it to the application respectively.

The important thing to notice in this model definition is the Tags field

type Post struct {
  // ...
  Tags        []tag.Tag `gorm:"many2many:posts_tags;"`
  // ..
}

The Tags field has a golang struct tag gorm defining the association type many2many and the name of the bridge table posts_tags.

Implementing new blog post use case

Now we have all the models required to enable publishing a new blog post, and it's time to have to go at its implementation.

Let's start by creating a new folder publish under post and add the scaffolding for the handler

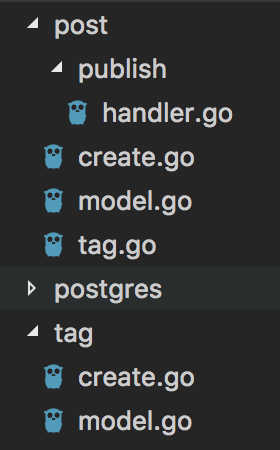

As we have seen earlier, the folder structure represent the use case, and the handler orchestrate the use case

// post/publish/handler.go
package publish

import (
  "github.com/jinzhu/gorm"
)

type Request struct {
  Title    string
  Body     string
  AuthorID uint
  Tags     []string
}

type Response struct {
  PostId uint
}

func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  // TODO
}

The implementation of publishing a new post involves the following steps

1. For all the Tags that are part of the request, we need to create an entry in the tags table. If it is already there, we don't need to create.

2. The next step is creating a new entry in the posts table with the given details.

3. Finally, we need to associate the Tags with the newly created Post via the bridge table.

Since it involves multiple inserts on the database side, all the three steps should happen inside a transaction.

The first two steps can be executed in any order as they are independent of each other

Code Organization (aka Responsibility Separation)

We discussed a little bit about code organization in the last blog post. One important thing which can help us, in the long run is having proper separation of concern in the code base.

There are multiple ways we can separate the concern. In our case, we are organizing by use cases with handler driving the implementation. The handler may access the data layer if the use case requires.

To keep things simple, we are not discussing dependency injection in handler and data layer interaction here. I am planning to cover this in my future blog posts.

Back to our business, the data access logic of the three steps will be in their respective packages and the publish handler coordinate the entire use case logic.

Step 1: Create a Tag if not exists

The first step is creating a tag if it is not there in the database. For the both new tags and the existing tags we need to get its id from the database to associate it with the posts.

Gorm has a method called FirstOrCreate to help us to implement this step.

// tag/create.go
package tag

import "github.com/jinzhu/gorm"

func CreateIfNotExists(db *gorm.DB, tagName string) (*Tag, error) {
  var tag Tag
  res := db.FirstOrCreate(&tag, Tag{Name: tagName})
  if res.Error != nil {
    return nil, res.Error
  }
  return &tag, nil
}

The FirstOrCreate method populates the Id field of the tag.

Step 2: Creating a new Post

It is similar to creating a new user that we saw in the last blog post

// post/create.go
package post

import (
  "github.com/jinzhu/gorm"
  "github.com/tamizhvendan/gomidway/postgres"
)

func Create(db *gorm.DB, post *Post) (uint, error) {
  res := db.Create(post)
  if res.Error != nil {
    if postgres.IsUniqueConstraintError(res.Error, UniqueConstraintTitle) {
      return 0, &TitleDuplicateError{}
    }
    return 0, res.Error
  }
  return post.ID, nil
}

Step 3: Associating Tag with Post

The final step is associating the tag with the post in the database. Gorm has a decent support for Associations. The one that we needed from gorm to carry out the current step is its Append method.

Let's define a constant in Post model which holds the AssociationTag

// post/model.go
// ...
const (
  // ...
  AssociationTags = "Tags"
)
// ...

Then add a new file tag.go in the post folder and implement the third step as below

// post/tag.go
package post

import (
  "github.com/jinzhu/gorm"
  "github.com/tamizhvendan/gomidway/tag"
)

func AddTag(db *gorm.DB, post *Post, tag *tag.Tag) error {
  res := db.Model(post).Association(AssociationTags).Append(tag)
  return res.Error
}

Publishing New Blog Post

Now we have all the individual database layer functions ready for all the three steps, and it's time to focus on the implementation of publishing a new blog post.

We already have the scaffolding in place

// publish/handler.go
// ...
func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  // TODO
}

As a first step, let's begin a new transaction using gorm's Begin method.

func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  tx := db.Begin()
  if tx.Error != nil {
    return nil, tx.Error
  }
  // TODO
}

Then call the Create function in post package to create a new blog post

func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  // ...
  newPost := &post.Post{
    AuthorID:    req.AuthorId,
    Title:       req.Title,
    Body:        req.Body,
    PublishedAt: time.Now().UTC(),
  }
  _, err := post.Create(tx, newPost)
  if err != nil {
    return nil, err
  }
  // TODO
}

Then for all the tags in the request, call the CreateIfNotExists function in tag package to get its respective Ids and associate it with the newly created post using the AddTag function in the post package.

func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  // ...
  for _, tagName := range req.Tags {
    t, err := tag.CreateIfNotExists(tx, tagName)
    if err != nil {
      tx.Rollback()
      return nil, err
    }
    err = post.AddTag(tx, newPost, t)
    if err != nil {
      tx.Rollback()
      return nil, err
    }
  }
  // TODO
}

A thing to note here is we are rolling back the transaction using the RollBack method in case of error.

The final step is committing the transaction and returning the newly created post id as response

func NewPost(db *gorm.DB, req *Request) (*Response, error) {
  // ...
  res := tx.Commit()
  if res.Error != nil {
    return nil, res.Error
  }
  return &Response{PostId: newPost.ID}, nil
}

Test Driving Publish New Blog Post

Let's test drive our implementation from the main function with some hard coded value

// main.go
package main

import (
  // ...
  "github.com/tamizhvendan/gomidway/post"
  "github.com/tamizhvendan/gomidway/post/publish"
)
// ...
func main() {
  // ...
  publishPost(db)
}


func publishPost(db *gorm.DB) {
  res, err := publish.NewPost(db, &publish.Request{
    AuthorId: 1,
    Body:     "Golang rocks!",
    Title:    "My first gomidway post",
    Tags:     []string{"intro", "golang"},
  })
  if err != nil {
    if _, ok := err.(*post.TitleDuplicateError); ok {
      fmt.Println("Bad Request: ", err.Error())
      return
    }
    fmt.Println("Internal Server Error: ", err.Error())
    return
  }
  fmt.Println("Created: ", res.PostId)
}

if we run the program with these hard coded values, we will get the following output

Created: 1

if we rerun the program without changing anything, we will get the bad request error as expected

Bad Request: title already exists

Summary

In this blog post, we have seen how to perform, create operation of a model having many to many relationship using gorm. The source code is available in my GitHub repository.
